Snap-on Diagnostic Software

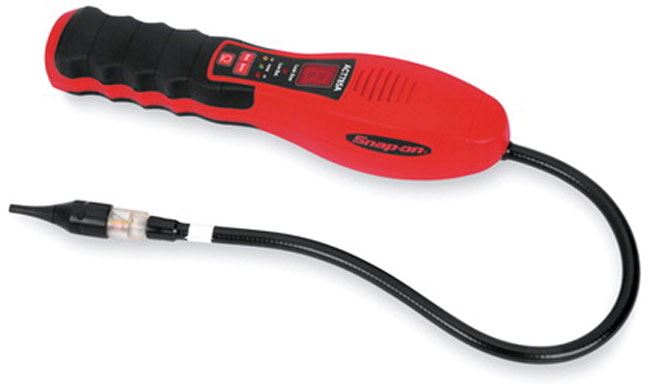

ACT785B - Digital Heated Sensor Leak Detector

SKU: ACT785B

R11 122,18 incl vat

Qty:

Cash Price: R10 566,07 incl vat

Features
Unique digital alarm with numeric leak size indicator
Long life, stable sensor
Automatic calibration is useful in heavily contaminated areas—the unit automatically recalibrates (re-zeroes) to ambient levels, which stops the constant alarm, only responding to higher levels of refrigerant; this allows the unit to search for the true source of the leak
Manual calibration—useful for smaller leaks; this also allows for recalibration to ambient levels, but only when the user chooses to do so (user may want the calibration to remain constant while searching for small leaks)
Three adjustable sensitivity levels
True mechanical pump
Features low battery indicator and mute
SAE J2791 (R134a) and SAE J2913 (R1234yf) certified, EN14624 certified
Garage tough
Visual LED leak alarm near the sensor (with numeric leak size indicator)
Inspection light utilizes bright 6,000 MCD LEDs
Includes carry case
CE approved

UV Mode	—
Battery Life (Continuous Use), hours	8
Power Supply	(4) AA Batteries (Alkaline)
Warm-Up Time	<20 Seconds
Country Of Origin	CHN
Warranty	3 Years (2 Years on Sensor)
Inspection Light Mode	—
Description (Chart)	Refrigerant Leak Detector
Sensitivity Range	.05 oz/yr (R134a); .015 oz/yr (R134yf); .03 oz/yr (R22)
Sensing Tip Life	>500 Hours
Probe Length	17"
Automatic and Manual Calibration	Yes
UV Wave Length	—
Alarm Near Sensor	Visual LED at Tip
Carrying Case	Included
Display	Seven Segment Digital (1–9)
